HOLLEY EFI
BASE MANIFOLD AND RAIL KIT FOR LO-RAM – LS1/LS2/LS6

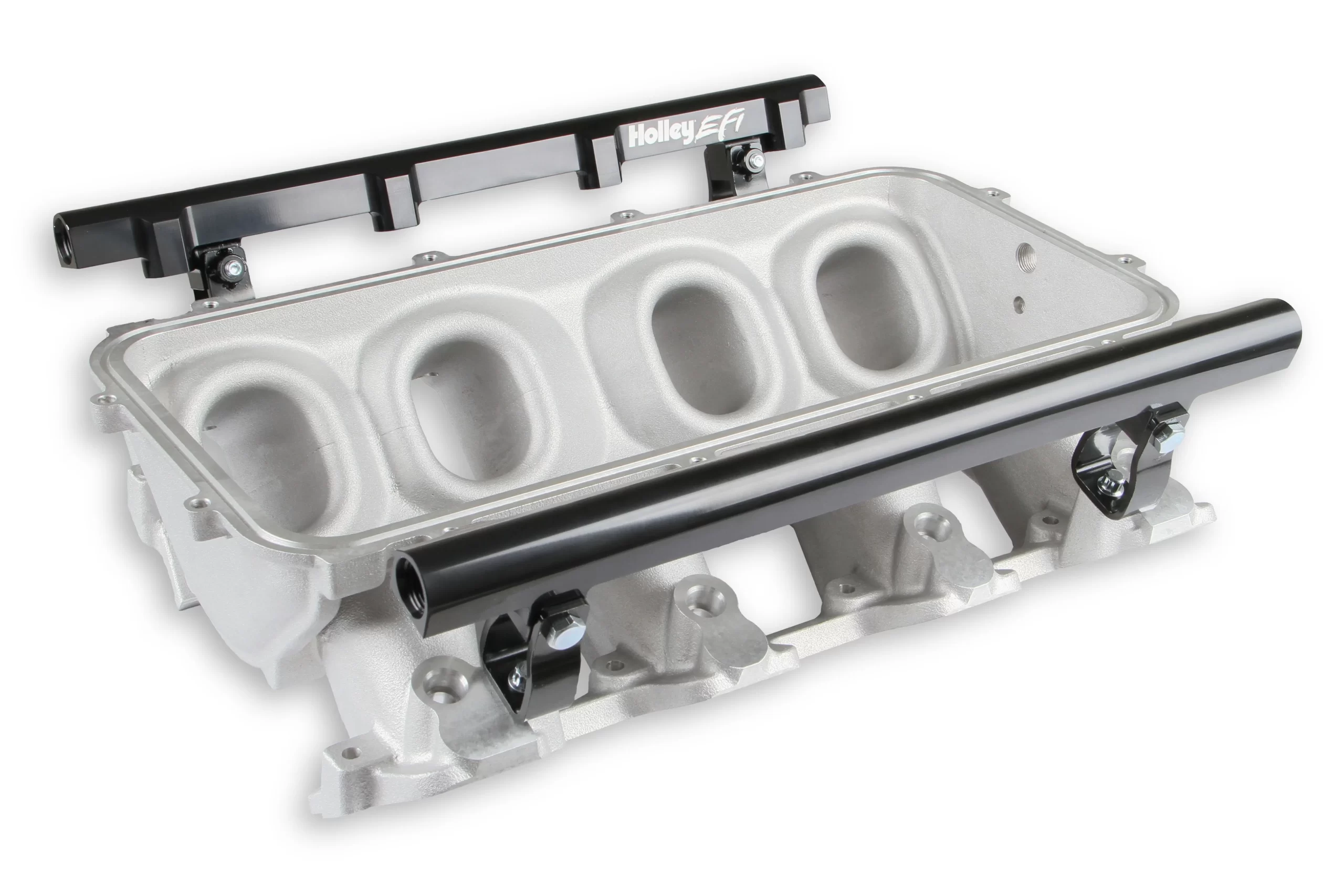

Satin Finish with Single Injector manifold and fuel rails
Part # 300-600
The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. The 300-600 is the lower manifold in the 300-620 complete kit. Offering this separately allows you to select your components individually as you build your system. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features:
- Base manifold and rail kit for Low-Ram 300-620 allows you to select your components individually as you build your intake system
- Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
- Low height to aid the use of a plenum mounted air-to-water intercooler in a top-feed configuration
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application

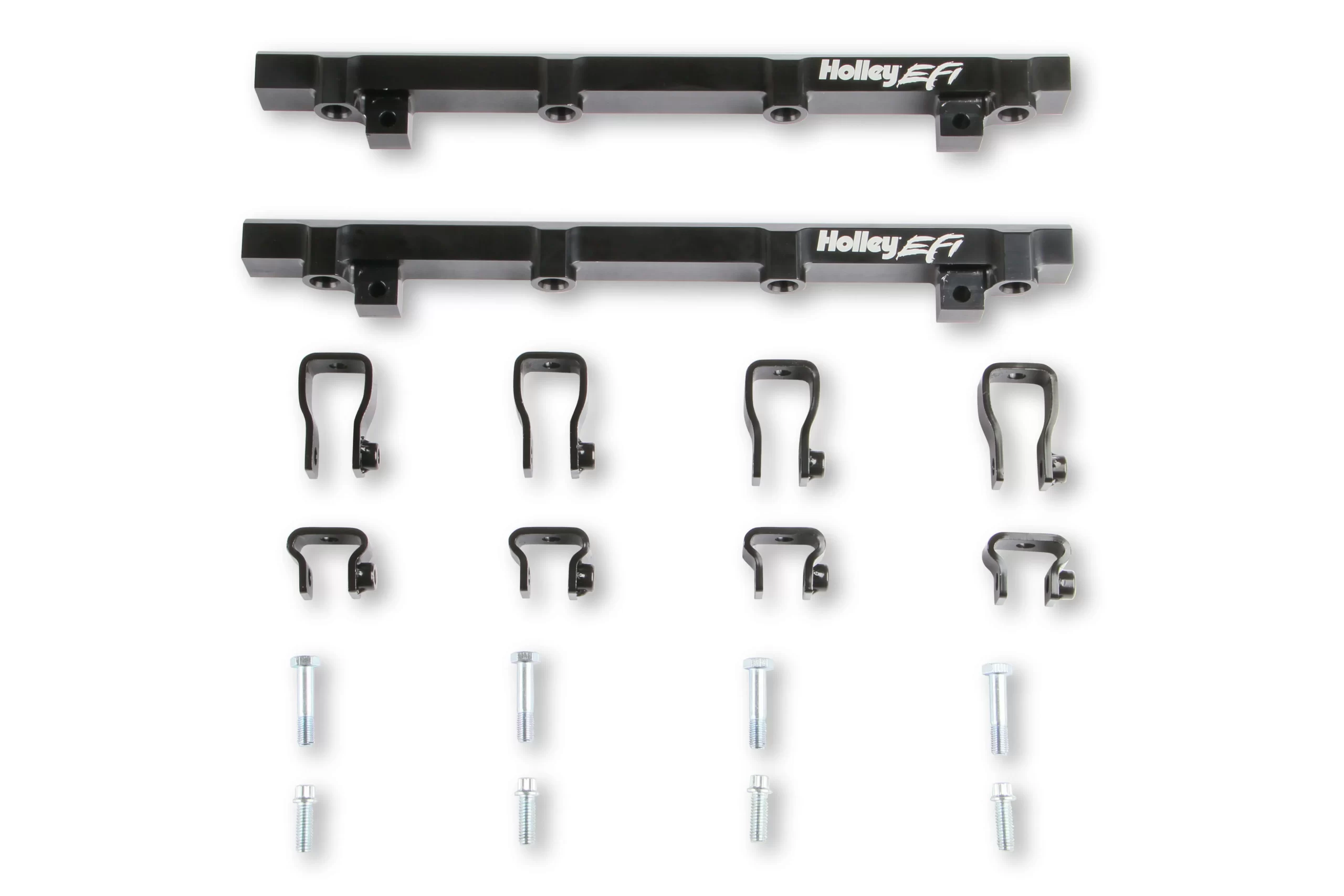

- High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN)
Brand | Holley EFI |
---|---|
Color | Silver |
Construction | Cast |
Emission Code | 3 |
Engine | GM LS1/LS2/LS6 |
Finish | Silver |
Fuel System Type | EFI |
Injector Quantity | Single |
Inlet Location | Top |
Manifold Type | Lo-Ram |
Product Type | Intake Manifold Base |
Recommended Use | Forced Induction |
RPM Power Band | 3500-8000 RPM |
Warranty | Limited 90 Day |
UPC | 090127077443 |
Part Number | 300-600 |
